DAYTONA

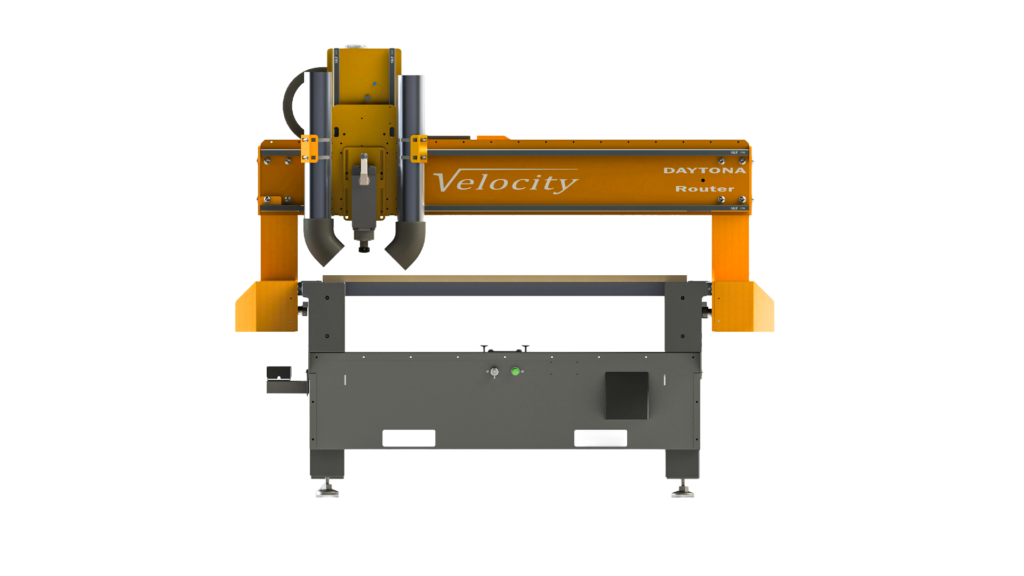

Daytona is our standard size chassis professional router table, taking less floor space but just as productive as its larger brother. Daytona uses much of the Daytona Pro design but in a smaller package. This makes the machine able to fit in tight spaces as well as makes it extremely rigid and like all our machines the Daytona is fully 3D capable through its full 8" work height. Daytona also features the heavy-duty parts of the larger Pro for equal output and longevity. Available in 4ft x 8ft and 4ft x 10ft bed sizes.

Daytona C8 .jpg

FEATURES

  • Very rigid construction without extra weight makes the Daytona tough and fast.

​

  • Our unique cross-bolted assembly allows perfect squaring during assembly, unlike welding.

​

  • Lift out table top sections for custom setups, drop-in jigs or 4th axis work.

​

  • Helical gearboxes eliminate backlash in the gear train.

​

  • Teknic servo motors: powerful, accurate, resistant to electrical noise, the highest quality in their class.

  • Highest quality SKF linear bearings throughout for best accuracy, reliability and long life.

​

  • Standard 4.5 KW / 6HP custom-built spindle with a TG-75 collet. Specially designed for supporting long cutting tools with unparalleled accuracy to reduce.

​

  • vibration and run-out.

​

  • 220 Volt single phase configuration allows installation in more locations – no need for 3 phase power.

​

  • Helical 10:1 gearboxes, high quality and low backlash with high acceleration rates.

​

  • Helical rack and pinion gear drive on all axes

DIMENSIONS

Length: 120” (304.8 cm) (8ft bed) or optional 144” (365.8 cm) (10ft bed)



Width:  78” (198 cm)



Height: (Max) 76” (193cm)



Electrical requirements: 220-240 Volt 40 Amp single phase 50 or 60 Hz

WORK AREA

Length: 97” (246 cm) or optional 121” (307 cm)



Width:  52” (157.5 cm)



Height: clearance under gantry 8” (20.3 cm) (Max travel 12” (30.5 cm))

​

PACKAGE INCLUDES

Machine with spindle, wrenches & collets



PC with Windows 10 and WinCNC installed and ready to run



21” 1280p monitor



All cables

​

13-month warranty on all parts and workmanship.



Non-expiring technical support, you call - we help.
